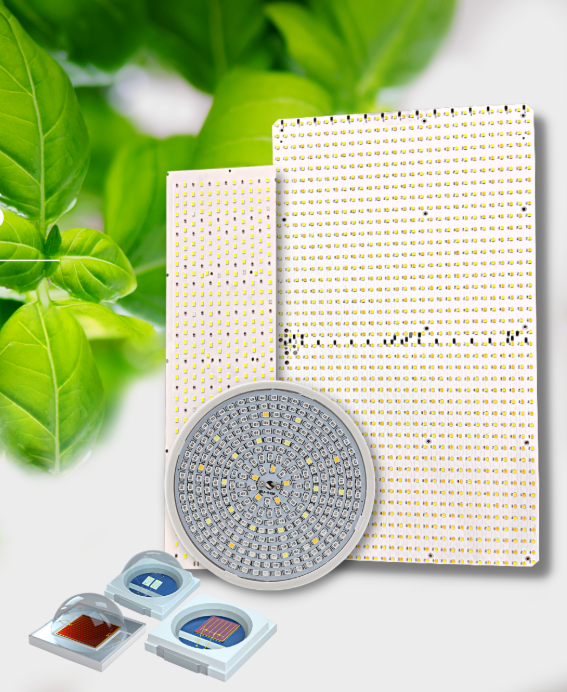

LED 3030
From High-Efficiency Cob & Smd Leds To Customizable Led Modules, We Deliver Reliable, High-Performance Solutions For Global Lighting Manufacturers.
Key Features:
White LED Compare With LM301H, EVO series
Excellent Sulfur Resistance
CCT Options: 3000K-6500K
Lm-80 / UL Certification
View more SMD LED
Specifications
| Product image | Product Type | Code Number | Current(mA) | Typical Voltage(V) | Max Current(mA) | Color | CRI/Ra | Substrate | PPE(μmol/J） | LPW(lm/W) | Download |
|
/ | / | / | / | / | / | / | / | / | / | / |
|
303H NOVA | LDR-3030TTB4070N0A40L0 | 20 | 9 | 100 | White | 70 | PCT | 3.35 | / | / |
|
|
301J | LDR-3030TTZ3080E0A30LX | 60 | 3 | 300 | White | 80 | PCT | 3.4 | / | / |
|
|
302H | LDR-3030TTB4070V0A40L0 | 60 | 3 | 300 | White | 70 | PCT | 3.4 | / | / |
|
|
302K | LDR-3030TTB3080E0A30L0 | 60 | 3 | 300 | White | 80 | PCT | 3.3 | / | / |
|
|
301S | LDR-3030TTAF730V0NR0H0 | 300 | 2 | 450 | Infrared | / | PCT | / | / | / |
|
|
302L | LDR-3030TTAB450G0UB0P0 | 300 | 3 | 300 | Blue | / | PCT | 2.0 | / | / |
|
|
302K | LDR-3030TTB450E0UB0P0 | 60 | 3 | 300 | Blue | / | PCT | 3.4 | / | / |
|
|
301C | LDR-3030TEAR660V0DR0L0 | 300 | 2 | 500 | Deepred | / | EMC | 3.2 | / | / |
|
|
301B Pro | LDR-3030CNAR660V0DR0P0 | 350 | 2 | 1000 | Deepred | / | Ceramics | 3.8 | / | / |
|
|
301V Plus | LDR-3030CLAR660V0DR0P0 | 350 | 2 | 700 | Deepred | / | Ceramics | 4.4 | / | / |
