LEDs For Outdoor Lighting

Our LEDs for outdoor lighting are designed to balance performance and environmental responsibility. We offer high lumen LED series for applications requiring maximum brightness and efficiency, as well as low blue light LED solutions developed to reduce ecological impact and support nighttime environmental protection in outdoor lighting systems.

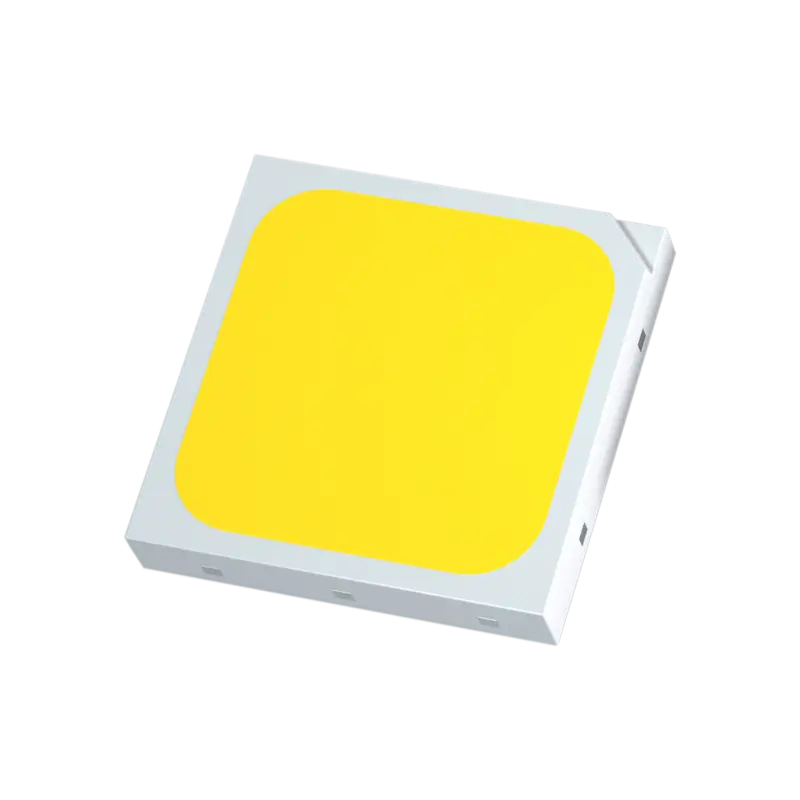

◆ LED 5050 Reach 260lm/W

◆ Efficient Heat Dissipation

◆ Long Life Span

◆ Module Available

Customizable modules for various lighting fixtures.

Feature Products

A comprehensive outdoor LED portfolio offering high lumen series and low blue light series, designed with optimized thermal performance for reliable outdoor applications.

4 Result(s)

View

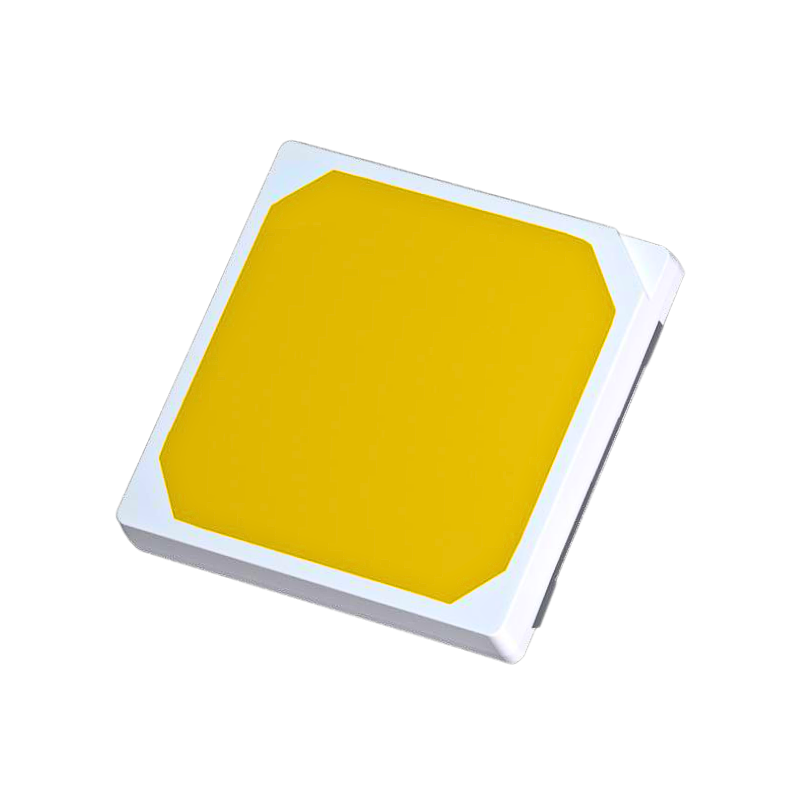

LDR-5050RPB4070T0A40E0

520T

Color: White

Current(mA): 150

Typical Voltage(V): 6

LDR-5050TEB57700A57E0

510K

Color: White

Current(mA): 150

Typical Voltage(V): 6

LDR-5050TPB4070M0A40E0

510T

Color: White

Current(mA): 150

Typical Voltage(V): 6

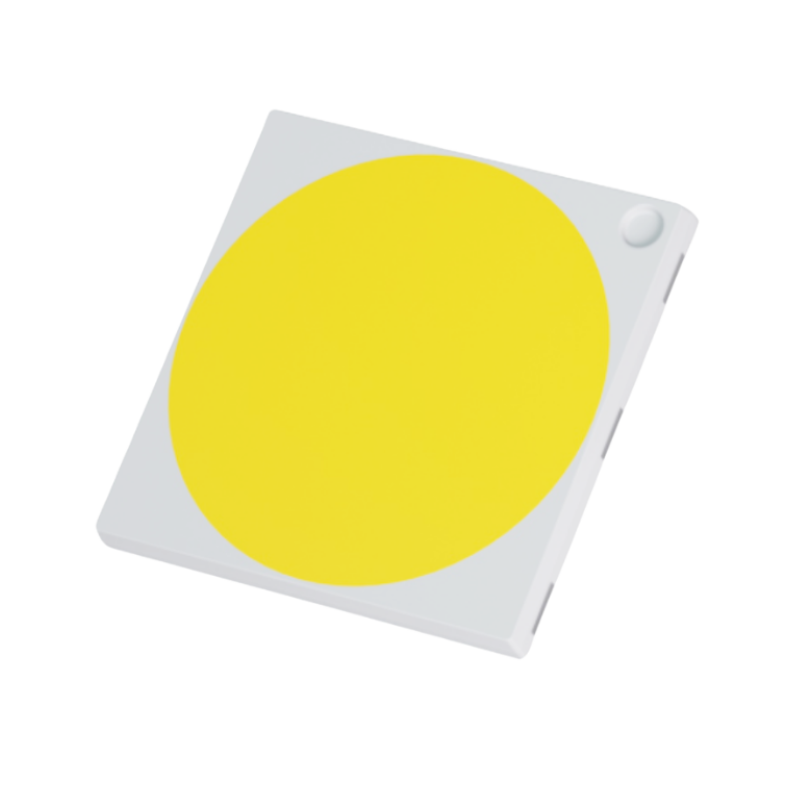

LDR-5050TPB4070T0A40E0

510H

Color: White

Current(mA): 150

Typical Voltage(V): 6

Product Type	Color	Current(mA)	Typical Voltage(V)	Download
520T	White	150	6	Download
510K	White	150	6	Download
510T	White	150	6	Download
510H	White	150	6	Download

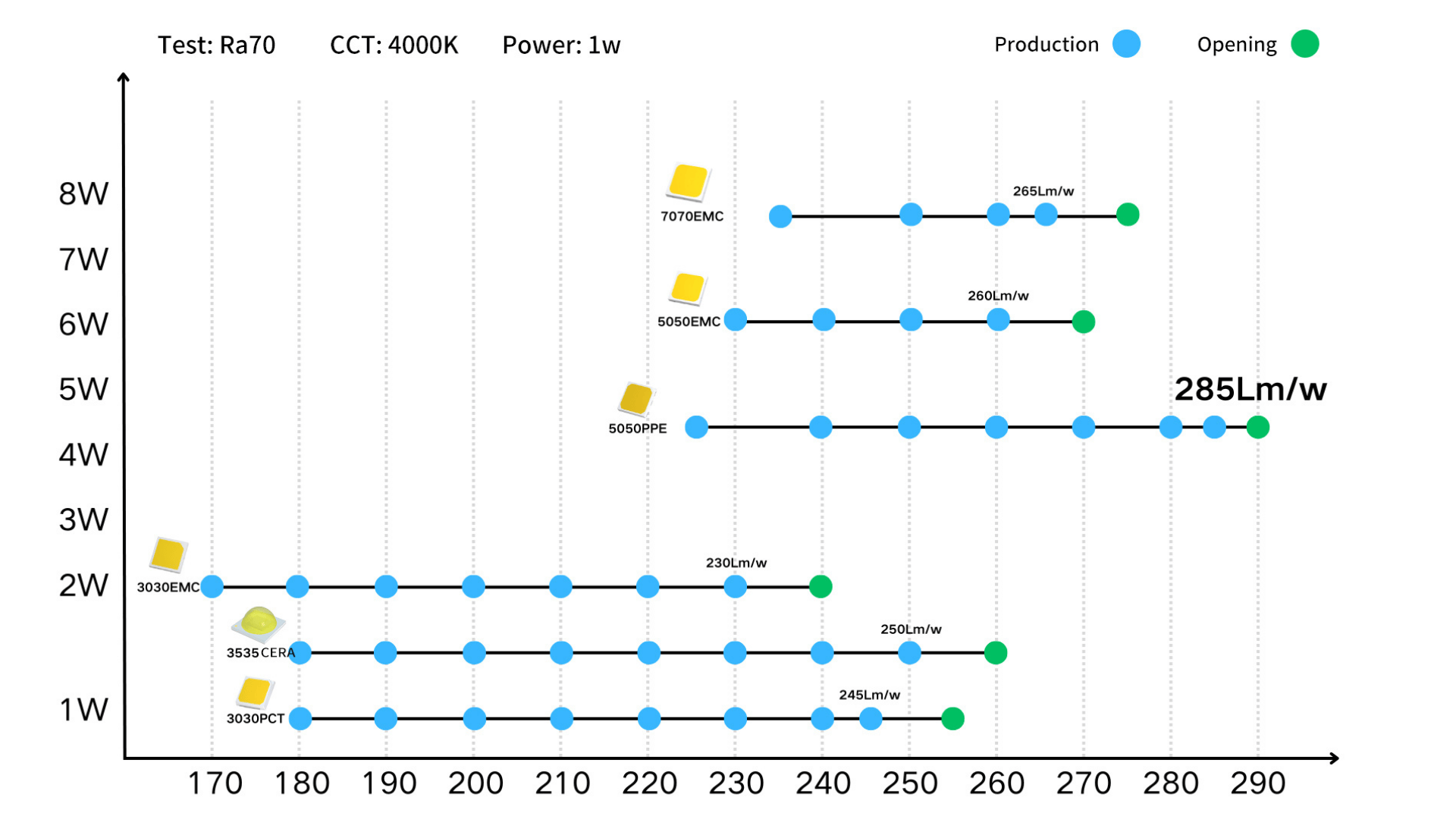

High Lumen LED Chip

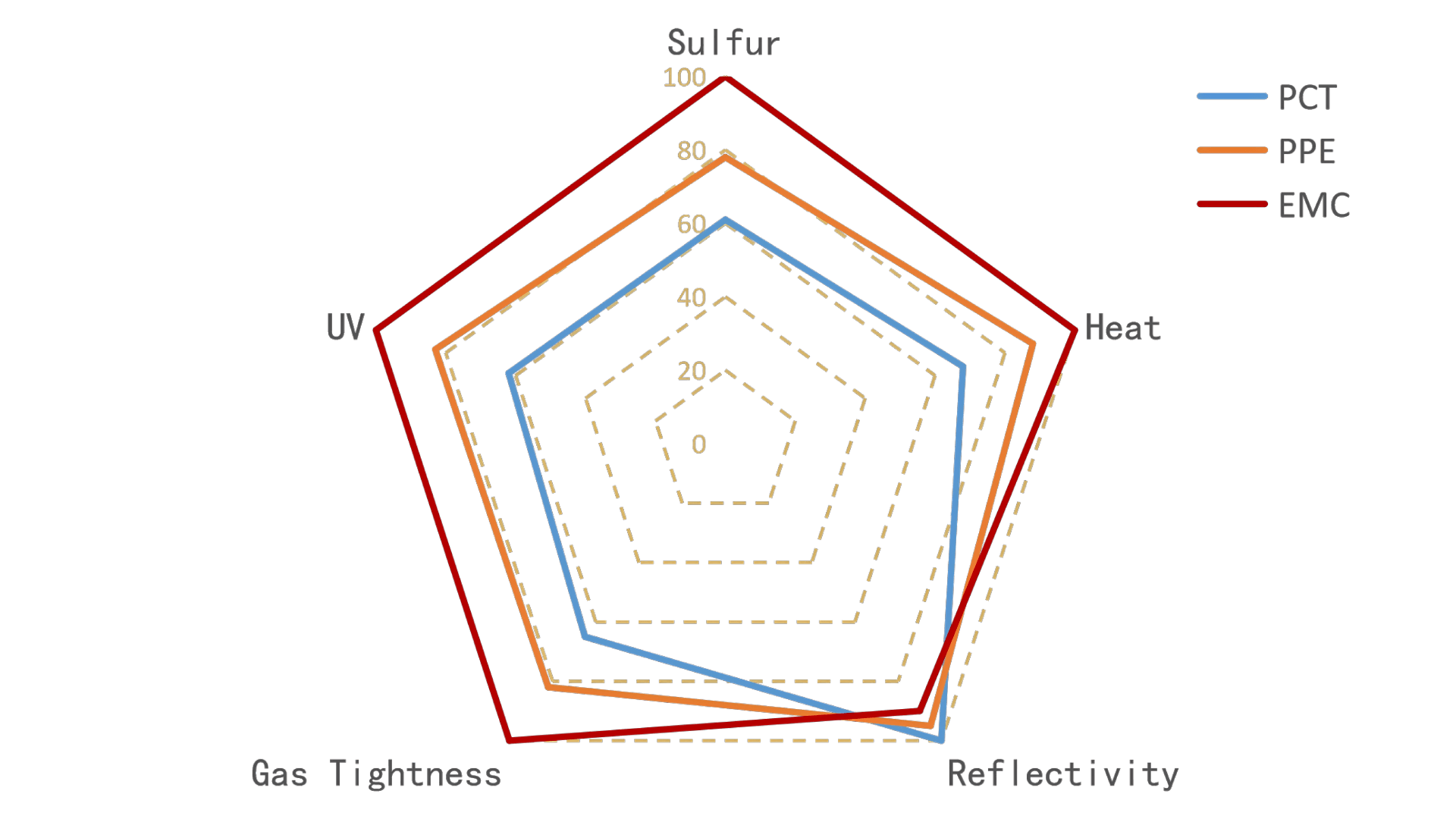

Ledestar supplies high-lumen, high-efficiency white LED chips in 2835, 3030, 3535, and 5050 packages, with multiple voltage options (3V / 6V / 9V / 12V) and a wide CCT range from warm white to cool white, ensuring stable output and precise binning. For outdoor and high-power use 3W 5W, our LED chips adopt PCT, EMC, and PPE materials, offering excellent heat resistance, moisture protection, and UV stability. This enables strong power handling and reliable performance even in harsh environments such as high temperature, humidity, and prolonged outdoor exposure.

DarkSky Approved LED

A Dark Sky Approved LED is a certified outdoor lighting solution designed to provide illumination only where needed, while minimizing light pollution and protecting the night sky.

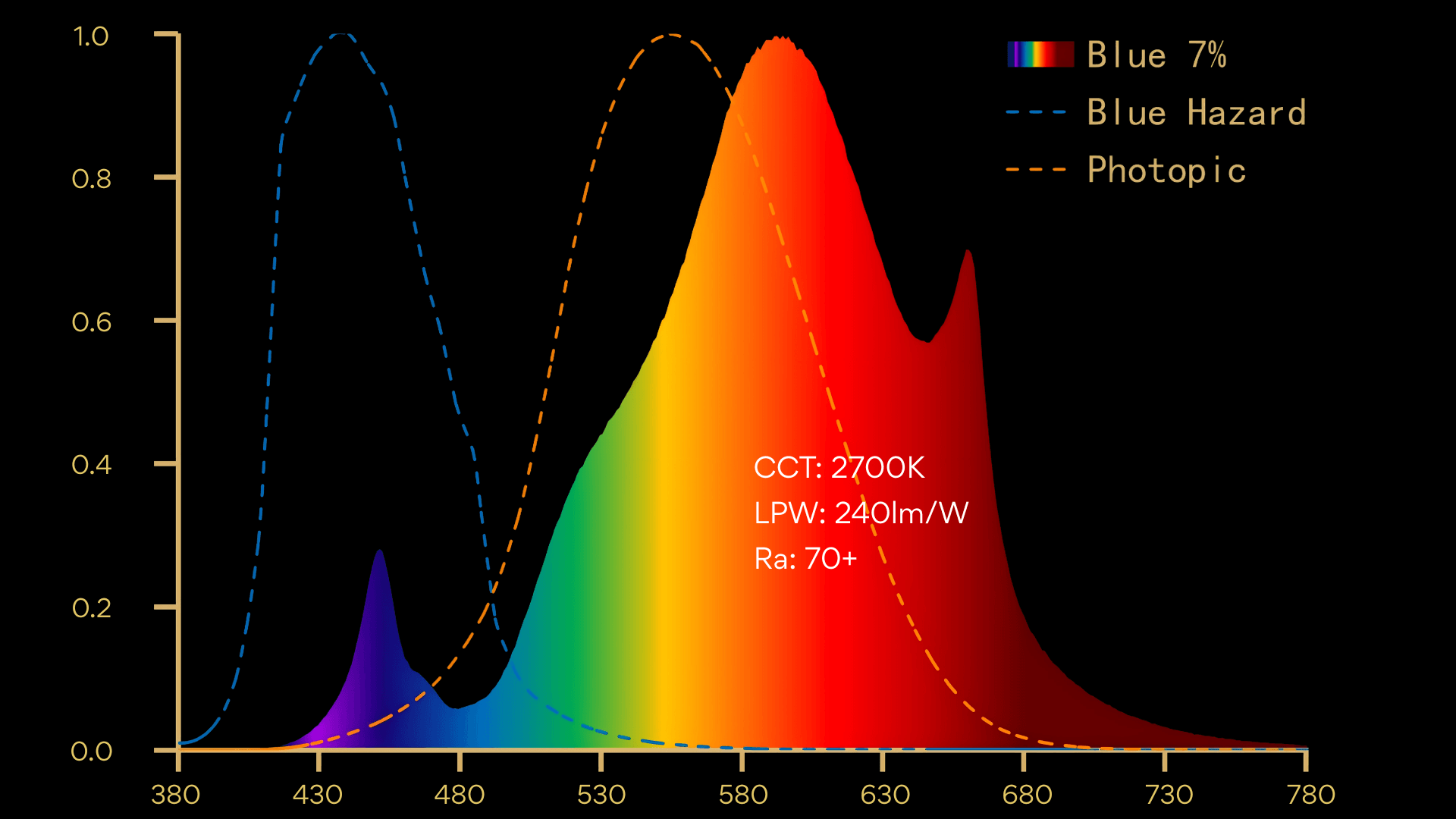

Blue Light < 1% and < 7% with Patented

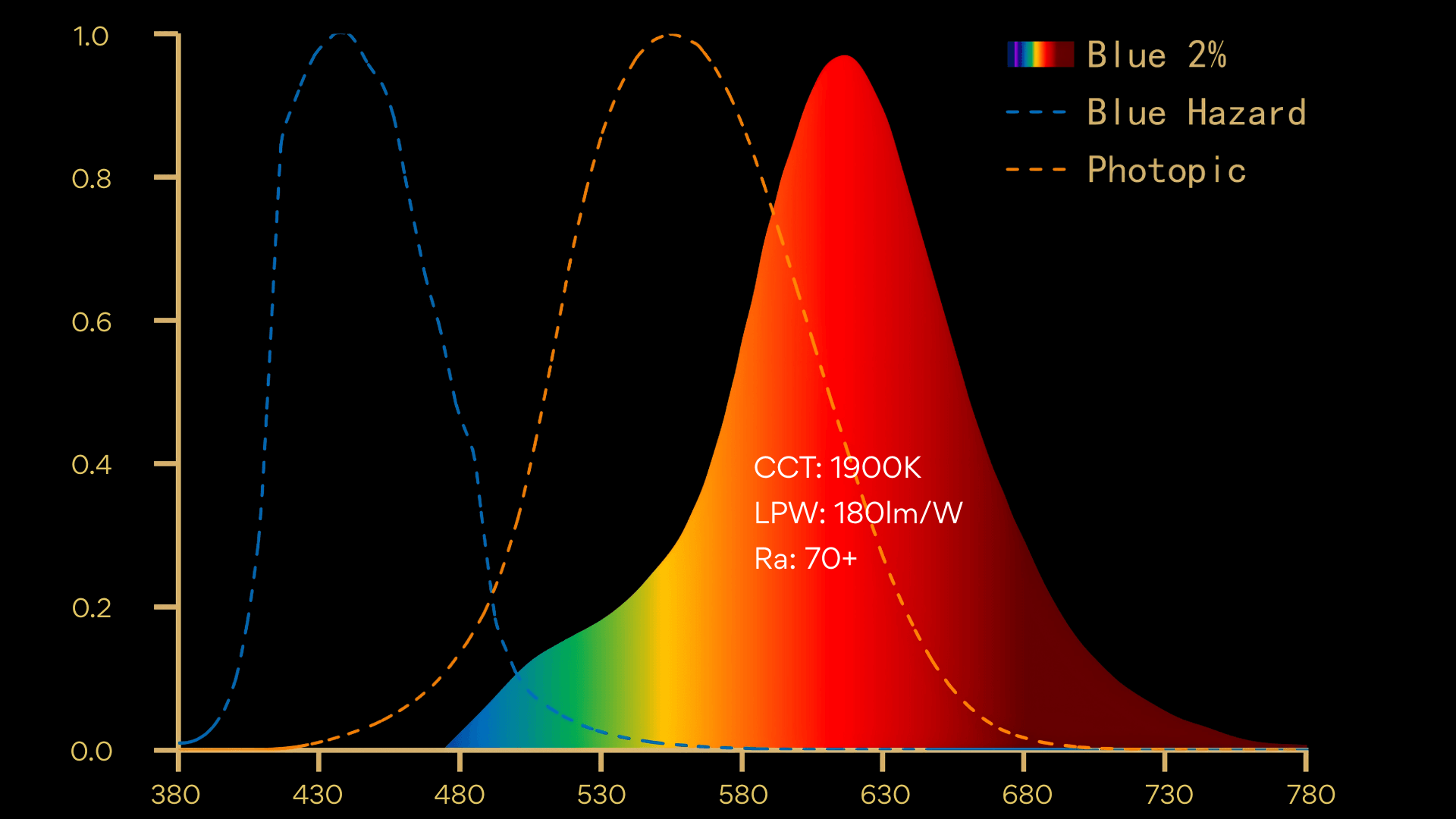

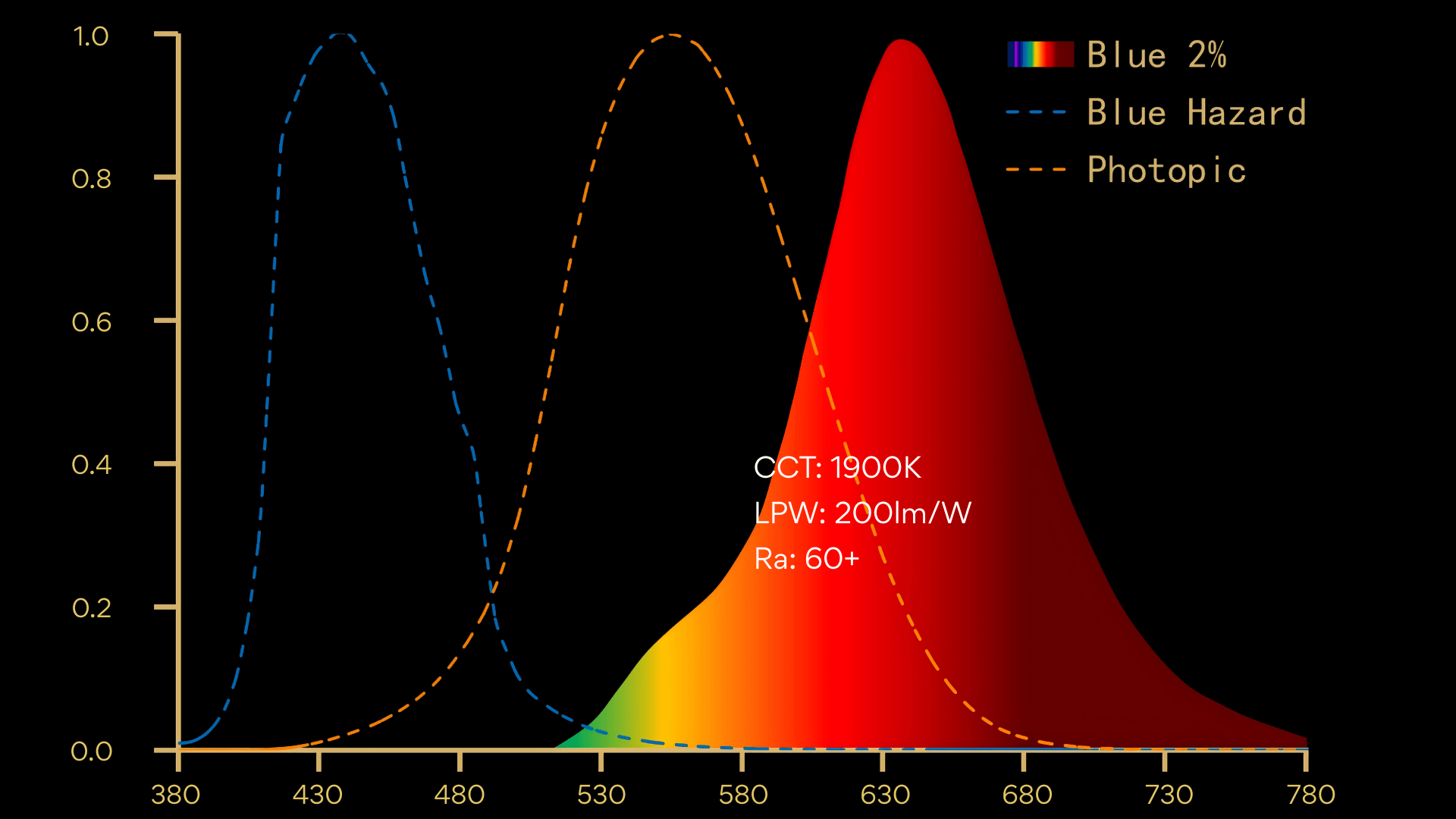

Blue Light < 2% Solution

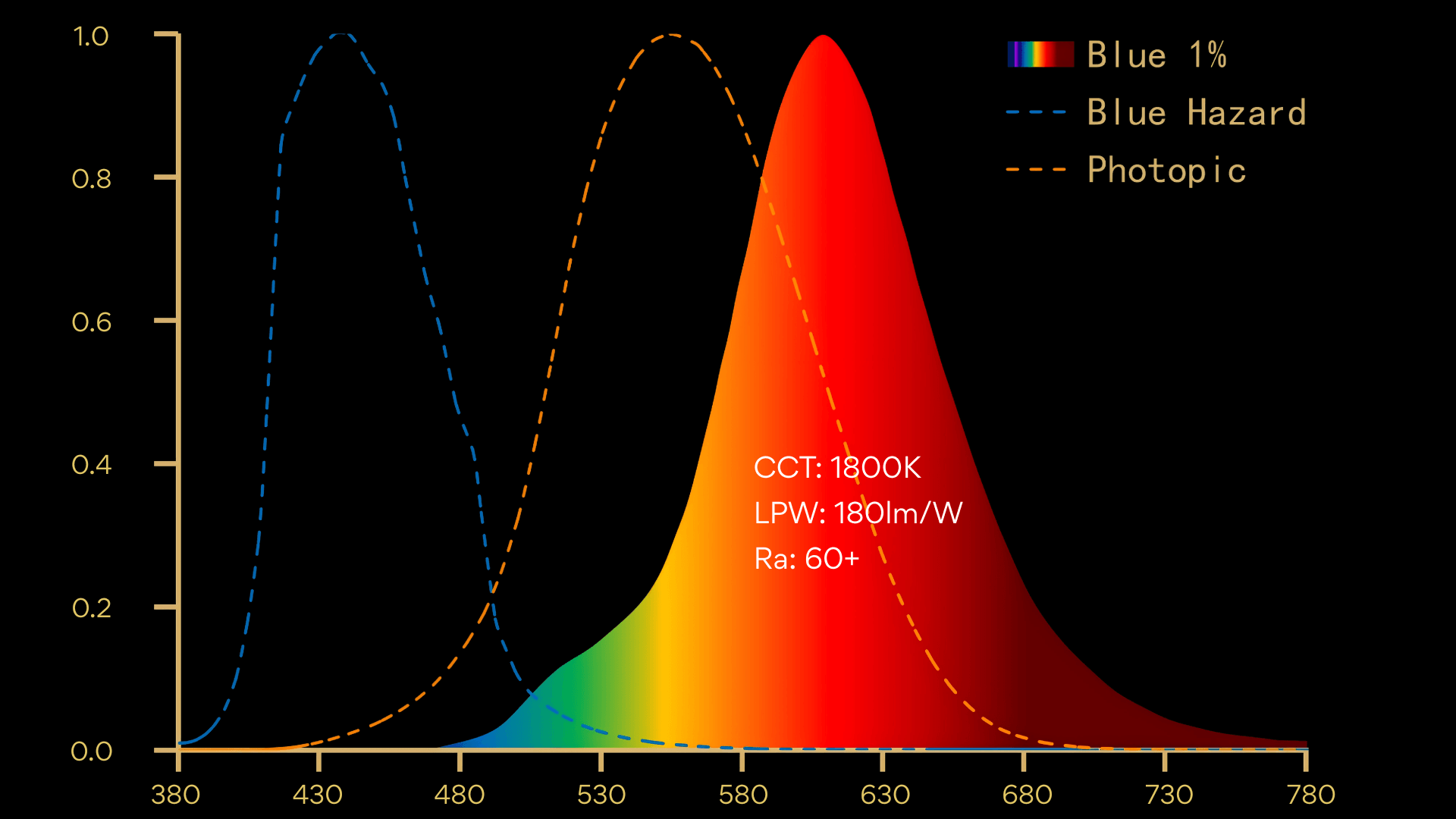

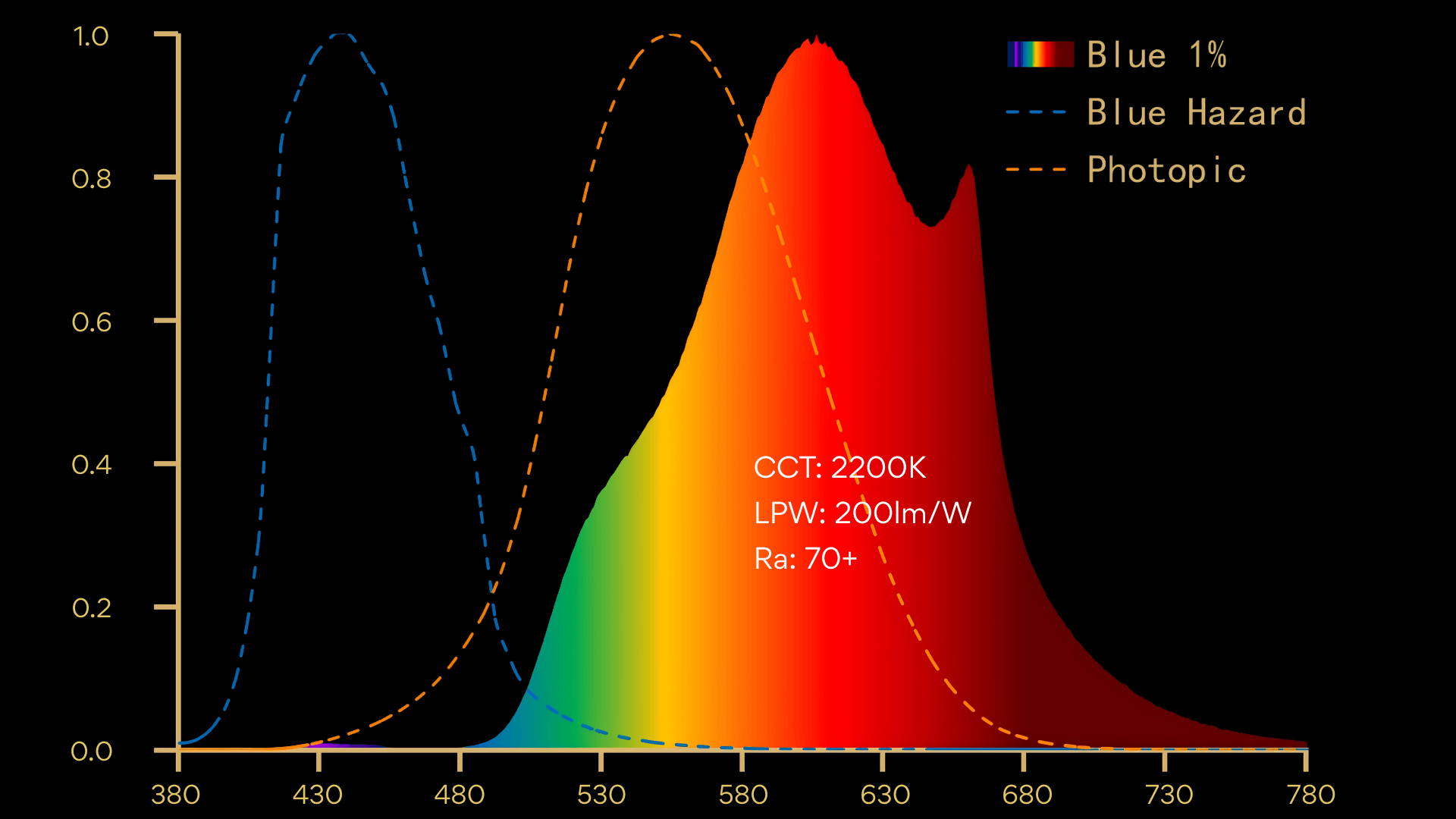

Blue Light < 1% Solution

Common LED Package Selection

LED Package	Typical Voltage	Power Range	Efficiency	Outdoor Application
2835 LED	3V	0.2W–1W	150–220 lm/W	Solar street lights

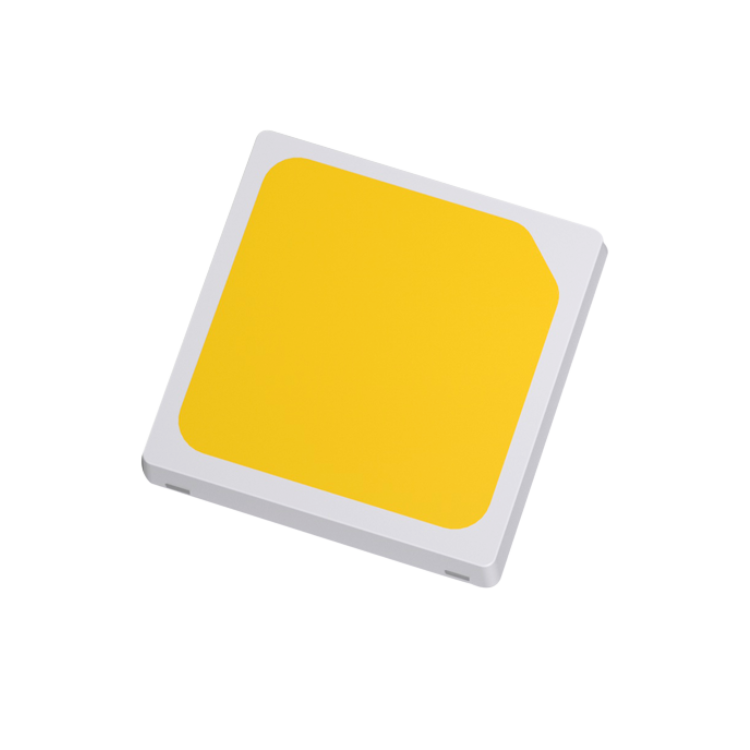

3030 LED	3V / 6V	1W–3W	160–220 lm/W	Street lights, parking lights

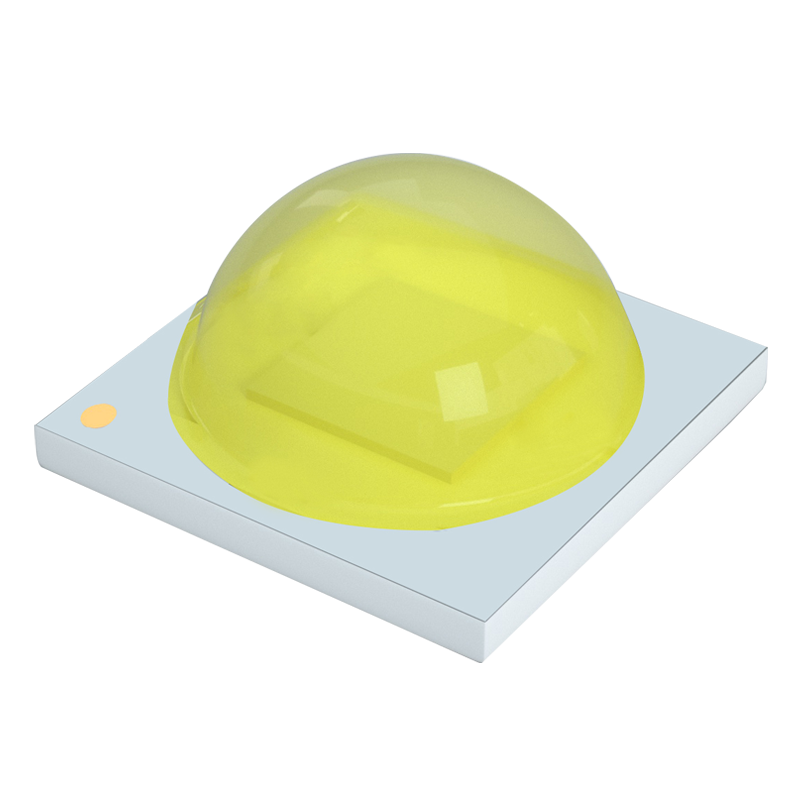

3535 LED	3V / 6V	1W–5W	140–200 lm/W	Flood lights, stadium lighting
5050 LED	6V / 12V	1W–3W	130–190 lm/W	Decorative outdoor lighting
COB LED	12V–48V	10W–200W	100–170 lm/W	High power flood lighting

Typical LED Combinations for Outdoor Lighting

Application	Recommended LED Combination	Typical Power	Color Temperature	Main Advantage

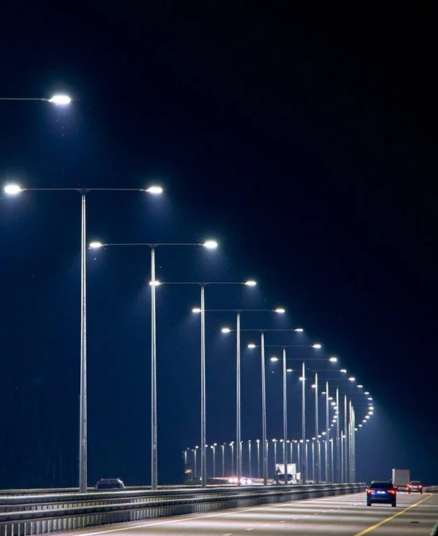

Street Light	3030 LED + Aluminum PCB + Lens Module	50W–300W	5000K–6500K	High efficiency and uniform road lighting
Flood Light	3535 LED + High Power Driver + Reflector	100W–1000W	5000K–6500K	Strong brightness and long-distance illumination

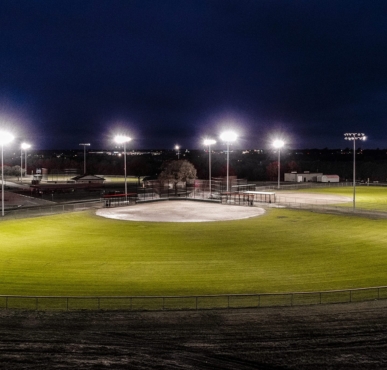

Stadium Lighting	3535 LED + Optical Lens + Copper Heat Sink	300W–1500W	5700K–6500K	High lumen output with precise beam control
Parking Lot Light	3030 LED + Wide Beam Lens	80W–240W	4000K–5700K	Wide coverage and low energy consumption

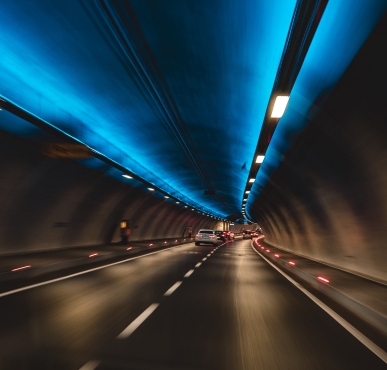

Tunnel Light	5050 LED + Anti-Glare Lens	50W–300W	5000K	Stable lighting with reduced glare
High Mast Light	3535 LED + Modular Heat Sink Design	400W–2000W	5700K–6500K	High power and excellent thermal management
Landscape Lighting	COB LED + Warm White Design	10W–100W	2700K–4000K	Soft lighting and decorative effect
Industrial Outdoor Lighting	5050 LED + Waterproof Driver	100W–500W	5000K–6500K	Reliable performance in harsh environments
