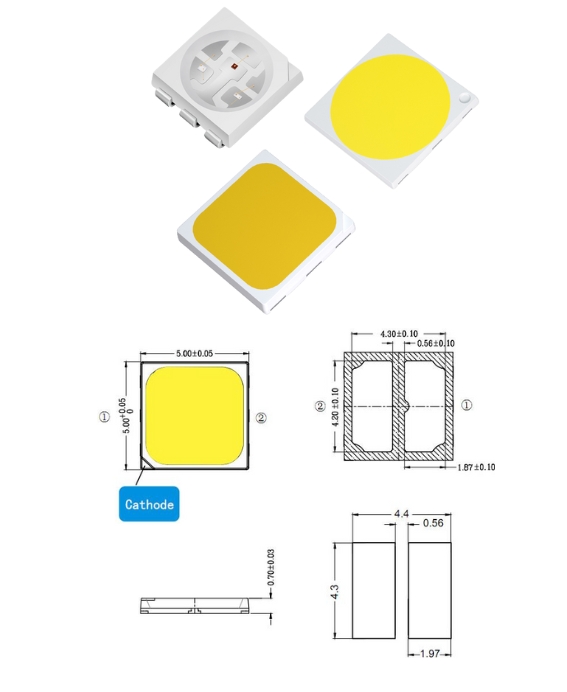

LED 5050
Ledestar’s LED 5050 is a 5.0 × 5.0 mm high-performance SMD package engineered for strong brightness and multi-color versatility. Available in high-lumen white and RGB versions, it delivers powerful illumination, smooth color mixing, and excellent thermal stability. Designed for LED modules, strip lights, and outdoor fixtures, Ledestar 5050 ensures reliable performance for both functional and decorative lighting applications.
Key Features:
High Lumen Up to 260lm/W
7-year Warranty
CCT Options: 2700K-6500K
Outdoor Modules Are Customizable
View more SMD LED
Specifications
| Select | Product image | Product Type | Code Number | Current(mA) | Typical Voltage(V) | Max Current(mA) | Color | CRI/Ra | Substrate | CCT(K)/WLP(nm) | PPE(μmol/J） | LPW(lm/W) | Download |
|
520T | LDR-5050RPB4070T0A40E0 | 150 | 6 | 500 | White | 70 | PPE | 2200-6500 | - | 260-270 |
|
|
|
510T | LDR-5050TE*5070-M0***E0 | 150 | 6 | 800 | White | 70 | EMC | 2200-6500 | - | 240-265 |
|
|
|
510K | LDR-5050TPB4070M0A40E0 | 150 | 6 | 500 | White | 70 | PPE | 2200-6500 | - | 245-255 |
|
|
|
510K | LDR-5050TEB57700A57E0 | 150 | 6 | 500 | White | 70 | EMC | 2200-6500 | - | 240-250 |
|
|
|
510T | LDR-5050TPB4070M0A40E0 | 150 | 6 | 500 | White | 70 | PPE | 2200-6500 | - | 250-260 |
|
|
|
508T | LDR-5050TPA3070M030GE0 | 150 | 6 | 500 | White | 70 | PPE | 2200-6500 | - | 255-265 |
|
|
|
508T | LDR-5050TEB5070R0A50E0 | 30 | 22 | 200 | White | 70 | EMC | 2200-6500 | - | 245-255 |
|
|
|
508K | LDR-5050TP*5070-M0***E0 | 150 | 6 | 500 | White | 70 | PPE | 2200-6500 | - | 250-260 |
|
|
|
512H | LDR-5050TEB4070N040GE0 | 400 | 9 | 500 | White | 70 | EMC | 2200-6500 | - | 215-225 | / | |
|
508H | LDR-5050TPB4070T0A40E0 | 45 | 24 | 125 | White | 70 | PPE | 2200-6500 | - | 240-255 |
|
|
|
508H | LDR-5050TEB3070M0A30E0 | 150 | 6 | 500 | White | 70 | EMC | 2200-6500 | - | 240-250 |
|
|
|
508B | LDR-5050TTA4070M0A40E0 | 150 | 6 | 500 | White | 70 | PPE | 2200-6500 | - | 235-245 |
|
|
|
508H | LDR-5050TE*6580-M0***E0 | 45 | 24 | 800 | White | 70 | EMC | 2200-6500 | - | 215-235 |
|
|
|
510B | LDR-5050TEAR660VDR0P0 | 150 | 6 | 1000 | White | 70 | PPE | 2200-6500 | - | 230-250 |
|
|
|
510K | LDR-5050TPA5070T0A50E0 | 45 | 26 | 100 | White 2700-6500K | 70 | PPE | / | / | 240-250 | / | |
|
508H | LDR-5050TEB3080M0A30H0 | 640 | 6 | 640 | White 2700-6500K | 80 | EMC | / | / | 210-230 | / | |
|
510H | LDR-5050TPB4070T0A40E0 | 150 | 6 | 500 | White | 70 | PPE | 2200-6500 | - | 250-260 |
|
|
|
508B | LDR-5050TPA4070M0A40KE0 | 150 | 6 | 500 | White | 70 | PPE | 2700-6500 | - | 245-255 |
|
|
| / |
|
/ | / | / | / | / | / | / | / | / | / | / | / |
| / |
|
/ | / | / | / | / | / | / | / | / | / | / | / |
| / |
|
/ | / | / | / | / | / | / | / | / | / | / | / |
|
5041 | LDR-5050CNFRGBW | 350 | R:2V G:3V B:3V W:3V | 1000 | RGBW | - | Ceramic | - | - | - |
|
|
|
5031 | LDR-5050TTARGY1 | 20 | R:2V G:3V Y:2V | 60 | RGY | - | PCT | - | - | - |
|
|
|
503B | LDR-5050TAARGB2 | 20 | R:2V G:3V B:3V | 60 | RGB | - | PPA | - | - | - |
|
Common 3535 LED Configurations
5050 LED Type
Voltage
Power Range
Typical Current
Main Feature
Common Applications
Single Color 5050 LED
3V
0.2W – 0.5W
60mA – 150mA
High brightness single-color output
Strip lights, decorative lighting, signage

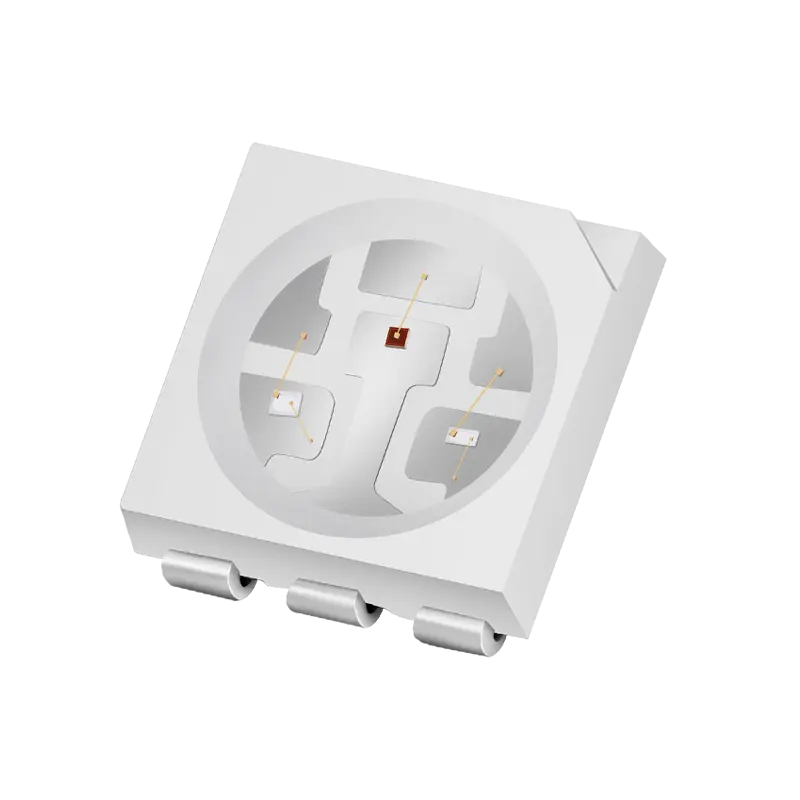

RGB 5050 LED
5V / 12V
0.2W – 0.6W
20mA per channel
Full RGB color mixing
Gaming, stage lighting, smart lighting

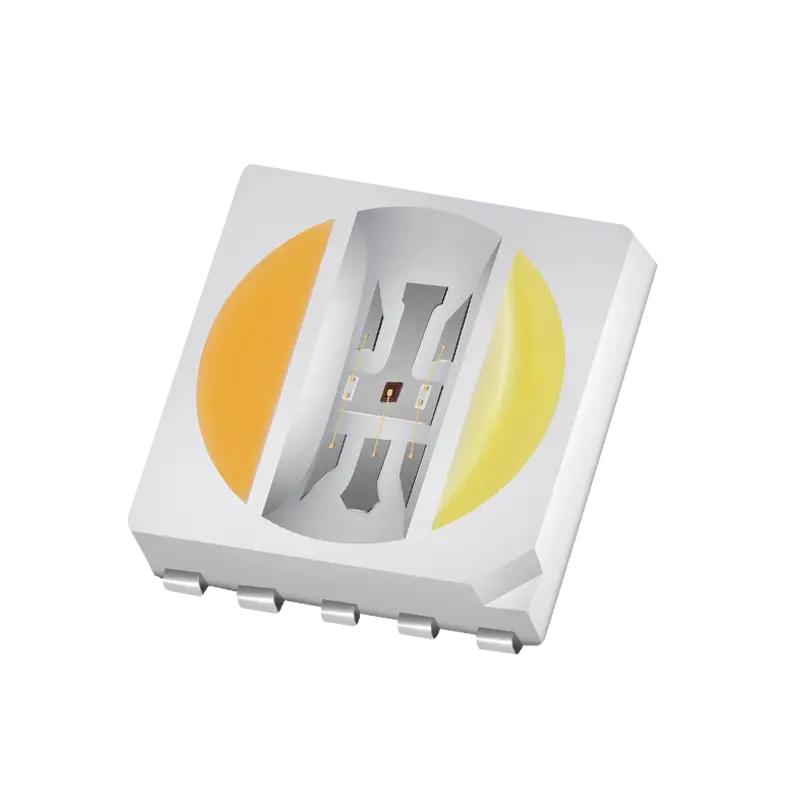

RGBW 5050 LED
12V / 24V
0.8W – 1W
60mA – 120mA
RGB + pure white lighting
Hotels, architectural lighting, smart homes
Addressable 5050 LED
5V
0.3W – 1W
18mA – 60mA
Individually controllable pixels
Pixel displays, animation lighting, LED screens
High Power 5050 LED
6V / 9V / 12V
1W – 3W
150mA – 700mA
High lumen output
Flood lights, industrial lighting, outdoor lamps
5050 SMD LED Wavelengths
| LED Color | Peak Wavelength (nm) | Typical Applications |
|---|---|---|
| UV-A | 365nm, 385nm, 395nm, 405nm | UV curing, inspection, specialty lighting |
| Violet | 410–430nm | Decorative and specialty lighting |
| Royal Blue | 440–455nm | Aquariums, horticulture lighting |
| Blue | 460–470nm | Displays, backlighting |
| Cyan | 490–500nm | Decorative lighting |
| Green | 520–535nm | Indicators, signage, displays |
| Lime Green | 560–575nm | Signal and architectural lighting |
| Amber | 590–595nm | Automotive lighting, warning lights |
| Orange | 600–610nm | Decorative lighting |
| Red | 620–630nm | Indicators, displays |
| Deep Red | 660nm | Horticulture lighting |
| Far Red | 730nm | Plant flowering control |
| RGB | 620nm / 525nm / 465nm | Full-color lighting, LED strips |
| RGBW | RGB + 2700K–6500K White | Smart lighting systems |
| Near Infrared | 810nm, 850nm | Medical devices, sensors |
| Infrared | 940nm | Remote controls, security cameras |
| IR | 1050nm | Industrial sensing |
5050 LED Application
Horticulture Lighting
Outdoor Lighting
Automotive Lighting
Therapy & Medical Lighting
