LED 3030

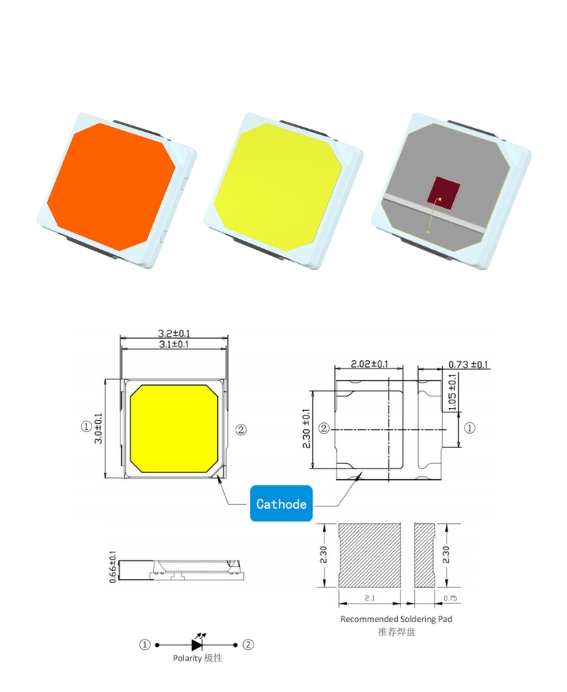

Ledestar’s LED 3030 is a 3.0 × 3.0 mm high-efficiency SMD package engineered for strong brightness and stable performance. It offers high-lumen white options with excellent thermal management, making it ideal for energy-efficient luminaires and LED modules. Beyond white light, Ledestar provides a full wavelength range—including 450 nm, 660 nm, 730 nm and more—supporting diverse applications in horticulture lighting, industrial lighting, and specialty illumination.
Key Features:
White LED Compare With LM301H, EVO series
High Lumen Performance
CCT Options: 3000K-6500K
Lm-80 / UL Certification
View more SMD LED
Specifications

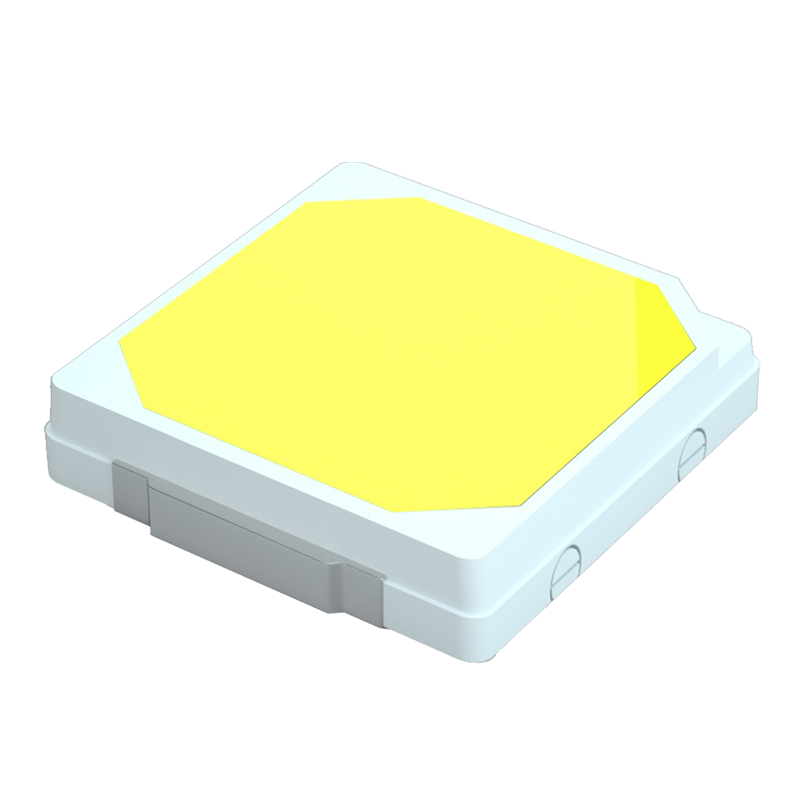

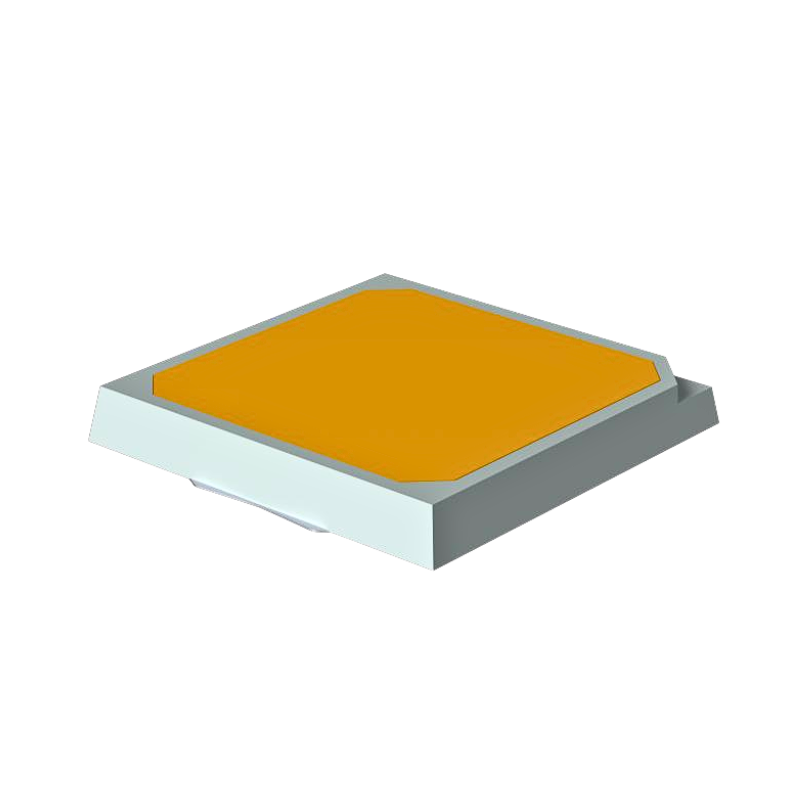

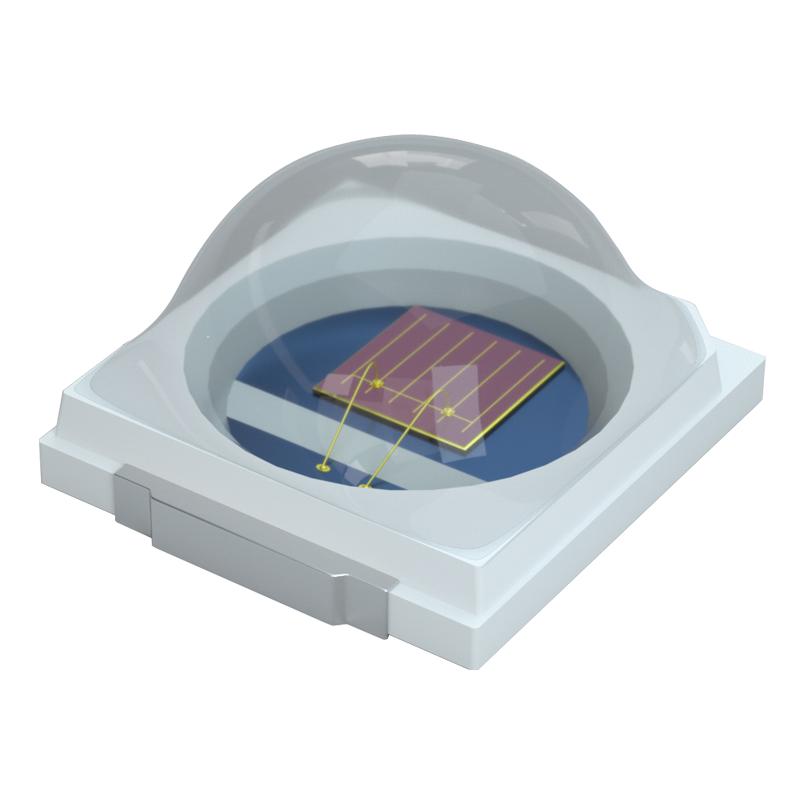

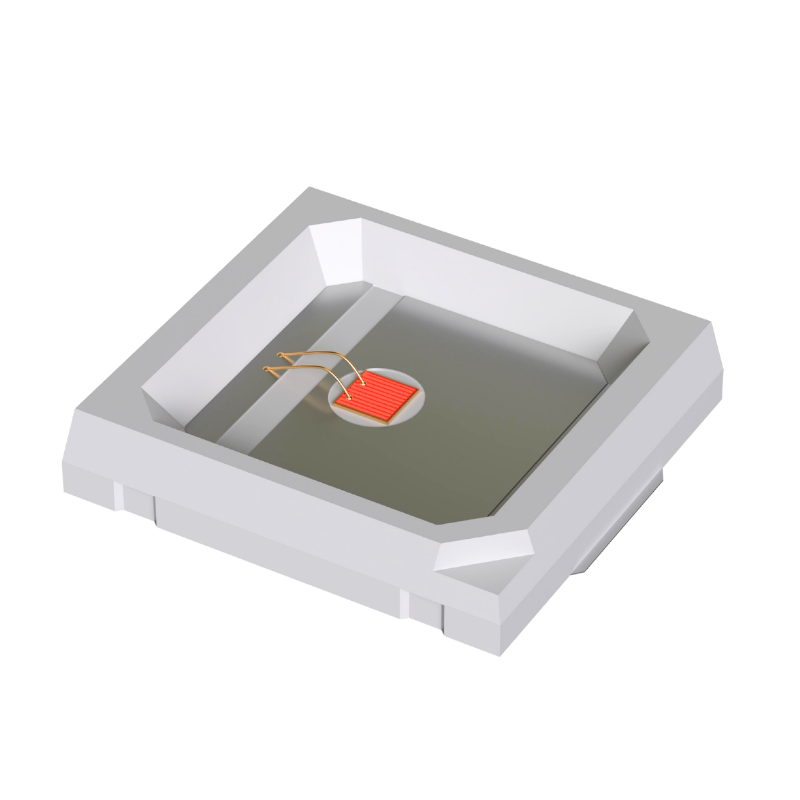

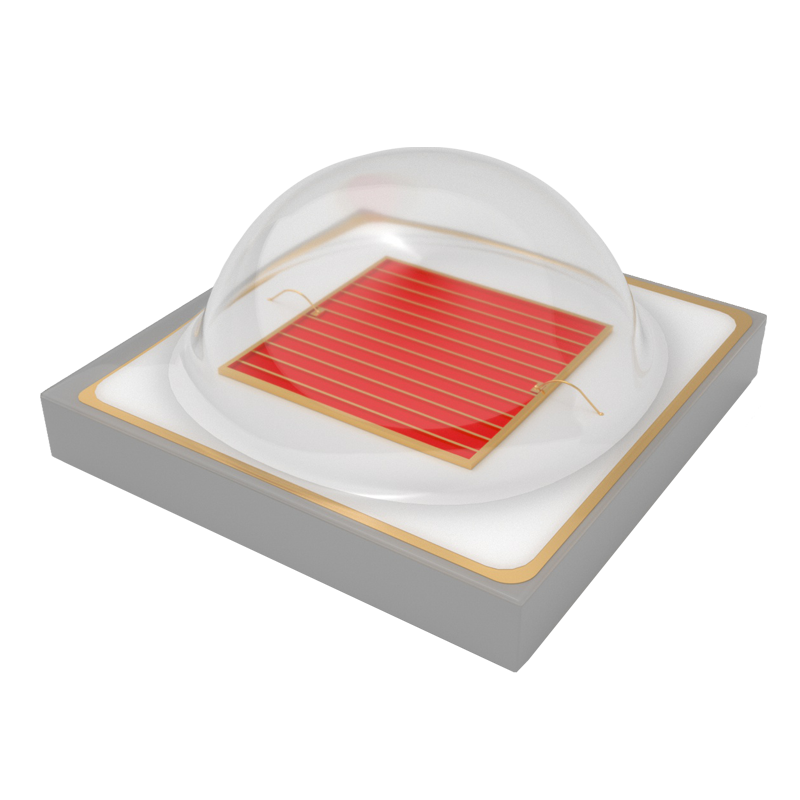

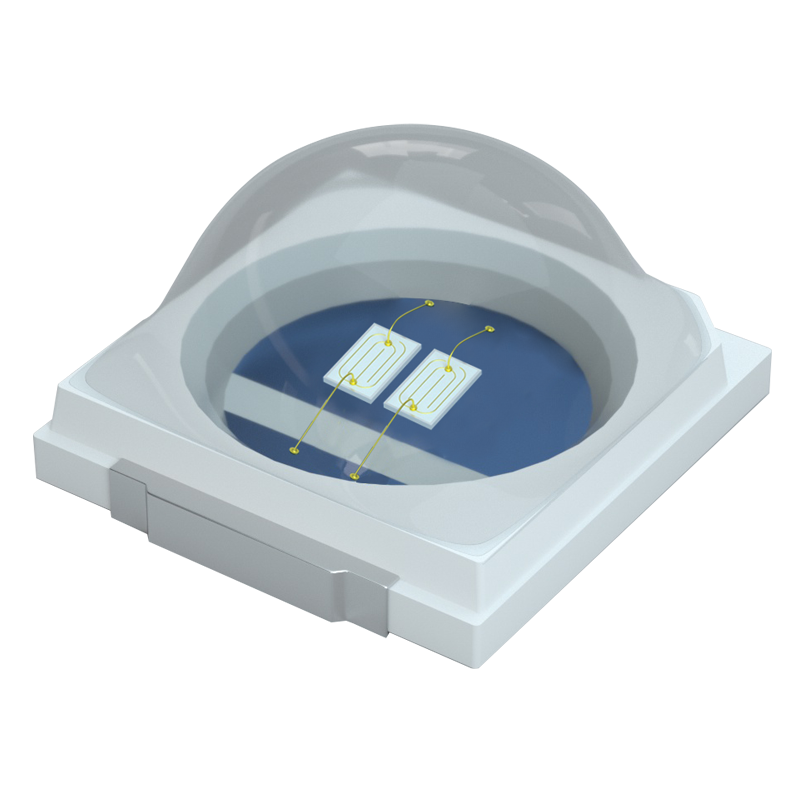

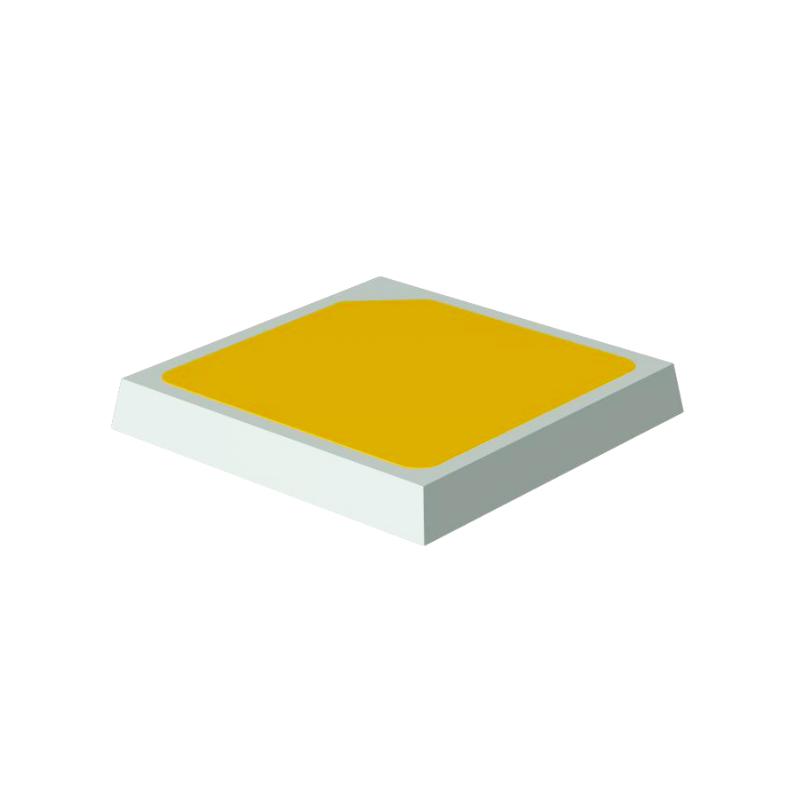

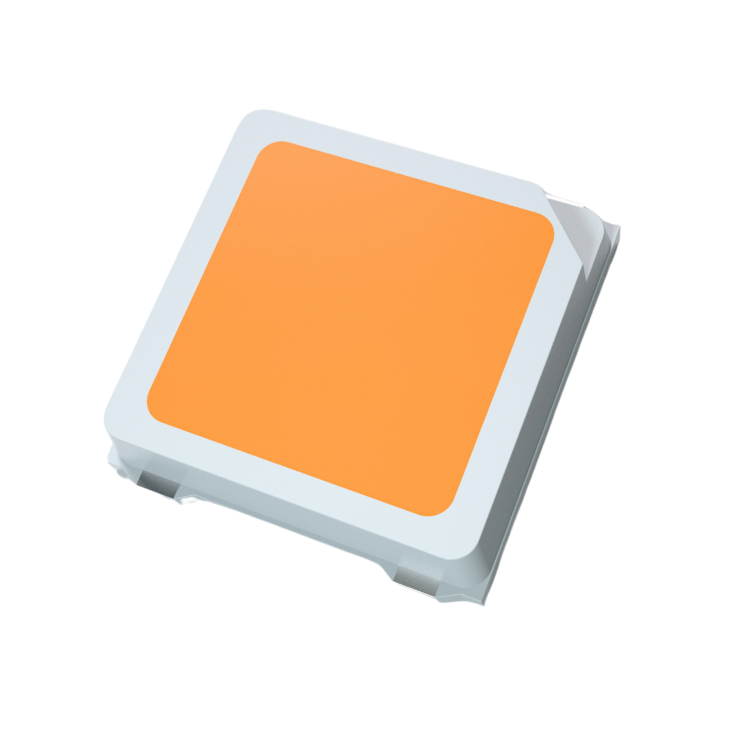

| Product image | Product Type | Code Number | Current(mA) | Typical Voltage(V) | Max Current(mA) | Color | Beam Angle(°) | CRI/Ra | Substrate | Radiant Flux(mW) | CCT(K)/WLP(nm) | PPE(μmol/J） | LPW(lm/W) | Download |
|
301V Plus | LDR-3030CLAR660V0DR0P0 | 350 | 2 | 700 | Deepred | 120 | - | Ceramic | / | 660 | 4.2-4.4 | - |
|
|
301B Pro | LDR-3030CNAR660V0DR0P0 | 350 | 2 | 1000 | Deepred | 120 | - | Ceramic | / | 660 | 3.6-3.8 | - |
|
|
302K | LDR-3030TTB450E0UB0P0 | 60 | 3 | 300 | Blue | 120 | - | PCT | / | 450 | 3.2-3.4 | - |
|
|
302L | LDR-3030TTAB450G0UB0P0 | 300 | 3 | 300 | Blue | 120 | - | PCT | / | 450 | 1.8-2.0 | - |
|
|
301S | LDR-3030TTAF730V0NR0H0 | 300 | 2 | 450 | Infrared | 120 | - | PCT | / | 730 | - | - |
|
|
301C | LDR-3030TEAR660V0DR0L0 | 300 | 2 | 500 | Deepred | 120 | - | EMC | / | 660 | 3.0-3.2 | - |
|
|
302B | LDR-3030TTB4070M0A40E0 | 150 | 6 | 300 | White | 120 | 70 | PCT | / | 2200-6500 | - | 245-255 |
|
|
302H | LDR-3030TTB4070M0A40E0 | 150 | 6 | 300 | White | 120 | 70 | PCT | / | 2200-6500 | - | 255-265 |
|
|
302K | LDR-3030TE*4070-V0***E0 | 60 | 3 | 500 | White | 120 | 70 | EMC | / | 2200-6500 | - | 255-265 |
|
|
302K | LDR-3030TTB4070M0A40E0 | 150 | 6 | 300 | White | 120 | 70 | PCT | / | 2200-6500 | - | 260-270 |
|
|
303H NOVA | LDR-3030TTB4070N0A40L0 | 20 | 9 | 100 | White | 120 | 70 | PCT | / | 3000-5000 | 3.15-3.35 | 190-200 |
|
|
304H | LDR-3030TE*4070-M0***E0 | 150 | 6 | 500 | White | 120 | 70 | EMC | / | 2200-6500 | - | 220-230 |
|
|
301J | LDR-3030TTZ3080E0A30LX | 60 | 3 | 300 | White | 120 | 80 | PCT | / | 2700-6500 | 3.2-3.4 | 190-200 |
|
|
304K | LDR-3030TT*5070-M0***E0 | 150 | 6 | 300 | White | 120 | 70 | PCT | / | 2200-6500 | - | 220-245 |
|
|
302H | LDR-3030TTB4070V0A40L0 | 60 | 3 | 300 | White | 120 | 70 | PCT | / | 2700-6500 | 3.2-3.4 | 200-210 |
|
|
302K | LDR-3030TTB3080E0A30L0 | 60 | 3 | 300 | White | 120 | 80 | PCT | / | 2700-6500 | 3.1-3.3. | 185-195 |
|
|
301C | LDR-3030TTF730-V0NR0H0 | 150 | 2 | 150 | Infrared | 120 | - | PCT | 220-300 | 730 | - | - |
|
|

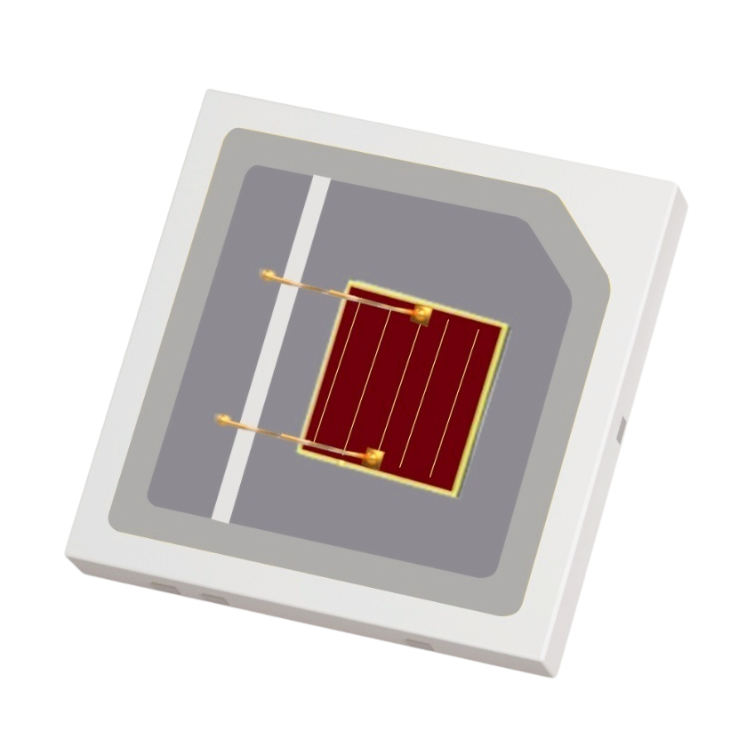

301A-VCSEL | LDR-3030TTZF940-V0FR0L0 | 15 | 2 | 30 | Infrared | 20 | - | PCT | / | 940 | - | - |
|
|
/ | / | / | / | / | / | / | / | / | / | / | / | / | / |
Common 3030 LED Models
| Configuration Type | Voltage | Power Range | Typical Current | Main Feature | Common Applications |
|---|---|---|---|---|---|
| Single Chip 3030 LED | 3V | 0.5W–1W | 150mA–350mA | High efficiency and compact size | Indoor lighting, LED bulbs |
| High Power 3030 LED | 6V | 1W–3W | 350mA–700mA | Higher brightness and thermal stability | Street lights, flood lights |
| Dual Chip 3030 LED | 6V / 12V | 2W–4W | 300mA–600mA | Improved luminous intensity | Industrial lighting, outdoor lamps |
| 3030 Horticulture LED | 2.8V–3.4V | 1W–3W | 350mA–700mA | Optimized spectrum for plant growth | Grow lights, vertical farming |
| 3030 Automotive LED | 3V / 6V | 1W–2W | 150mA–500mA | Reliable high-temperature performance | DRL, headlights, signal lights |
| 3030 RGB LED | 5V | 0.2W–1W | 60mA–150mA | Multi-color lighting capability | Decorative lighting, display systems |
3030 LED Application
Horticulture Lighting
Outdoor Lighting
Automotive Lighting
Therapy & Medical Lighting
