LED 2835

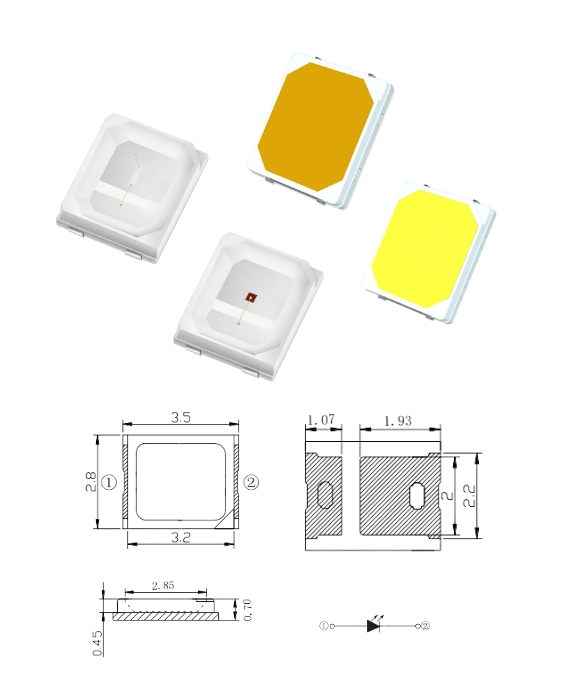

Maximize plant growth without breaking the bank with our LED 2835 chip, offering full-spectrum tailored for cost-effective horticulture lighting. Ideal for budget-conscious growers, this energy-efficient chip reduces power costs by 40% vs. traditional lighting, with a slim 2.8x3.5mm design for flexible, high-density setups. Durable, low-heat, and perfect for home gardens, small farms, or supplemental lighting.
Key Features:
Full spectrum customize
Cost-effective
High efficiency
View More SMD LED
Specifications
| Select | Product image | Product Type | Code Number | Current(mA) | Typical Voltage(V) | Max Current(mA) | Color | Beam Angle(°) | CRI/Ra | Substrate | Radiant Flux(mW) | CCT(K)/WLP(nm) | PPE(μmol/J） | LPW(lm/W) | Download |
|
282K | LDR-2835TTB3080E030KL0 | 60 | 3 | 300 | White | 120 | 80 | PCT | / | 2700-6500 | 3.2-3.4 | 210-220 |
|
|
|
282H | LDR-2835TTB3080E030KL0 | 60 | 3 | 300 | White | 120 | 80 | PCT | / | 2700-6500 | 3.1-3.3 | 200-210 |
|
|
|
281K | LDR-2835TTB4080V0A40L0 | 60 | 3 | 150 | White | 120 | 80 | PCT | / | 2700-6500 | - | 210-220 |
|
|
|
|
283K | LDR-2835TTB4070N0A40E0 | 100 | 9 | 10 | White | 120 | 70 | PCT | / | 2200-6500 | - | 215-225 |
|
|
|
282C | LDR-2835TTB5080V0A50L0 | 60 | 3 | 300 | White | 120 | 80 | PCT | / | 2700-6500 | - | 200-210 |
|
|
|
281C | LDR-2835TTBES01V001KL0 | 150 | 3 | 150 | Full Spectrum | 120 | - | PCT | / | - | 1.4-1.6 | 30-35 |
|
|
|
281C | LDR-2835TAA3097G030KHB | 150 | 3 | 150 | White | 120 | 97 | PPA | / | 2700-6500 | - | 125-135 |
|
|
|
281C | LDR2835TTB3095V030KL0 | 60 | 3 | 150 | White | 120 | 95 | PCT | / | 2700-6500 | - | 135-145 |
|
|
|
282M | LDR2835TAA18NAV018LH0 | 300 | 3 | 300 | Golden | 120 | 70 | PCT | / | 1800-2000 | - | 120-130 |
|
|
|
281F | LDR-2835TAA1970V018CL0 | 60 | 3 | 60 | Golden | 120 | 70 | PPA | / | 1800-2000 | - | 115-125 |
|
|
|
281C | LDR-2835TTA15NAV0Y15L0 | 150 | 3 | 150 | Golden | 120 | - | PCT | / | 1400-1600 | - | 90-100 |
|
|
|
281M | LDR-2835LTF730-V0NR0H0 | 150 | 2 | 150 | Infrared | 120 | - | PCT | 140-180 | 730 | - | - |
|
|
|
281A-VCSEL | LDR-2835TTZF850 | 10 | 2 | 150 | Infrared | 25 | - | PCT | / | 850 | - | - |
|
|
|
|
281A-VCSEL | LDR-2835TTZR660-V0DR0L0 | 60 | 2 | 150 | Deepred | 20 | - | PCT | / | 660 | - | - |
|
|
|
281B | LDR-2835LAAG520V0EG0H0 | 60 | 3 | 150 | Green | 60 | - | PPA | / | 520 | - | - |
|
|
|
281A | LDR-2835LAAY590V0UY0L0 | 60 | 2 | 150 | Yellow | 60 | - | PPA | / | 595 | - | - |
|
|
|
281H | LDR-2835TTAB450V0UB0P0 | 150 | 3 | 150 | Blue | 120 | - | PCT | / | 450 | 2.4-2.6 | - |
|
|
|
281M | LDR-2835LTAF730V0NR0H0 | 150 | 2 | 150 | Infrared | 120 | - | PCT | / | 730 | - | - |
|
|
|
281D | LDR-2835TTAF730V0NR0H0 | 60 | 2 | 60 | Infrared | 120 | - | PCT | / | 730 | - | - |
|
|
|
281Z | LDR-2835TAAR660V0DR0P0 | 150 | 2 | 150 | Deepred | 120 | - | PCT | / | 660 | 2.4-2.6 | - |
|
|
|
281B | LDR-2835TAAR660V0DR0P0 | 150 | 2 | 150 | Deepred | 120 | - | PPA | / | 660 | 3.4-3.6 | - |
|
|
| / |
|
/ | / | / | / | / | / | / | / | / | / | / | / | / | / |
| / |
|
/ | / | / | / | / | / | / | / | / | / | / | / | / | / |
|
281F | LDR-2835TAE3090V030KL0 | 60 | 3 | 60 | White | 120 | 90 | PPA | / | / | / | / |
|
Common SMD LED 2835 Models
Common 2835 SMD LED Wavelengths
| LED Color | Peak Wavelength (nm) | Typical Applications |
|---|---|---|
| UV-A | 365nm, 385nm, 395nm, 405nm | UV curing, printing, inspection |
| Violet | 410–430nm | Specialty lighting |
| Blue | 450–470nm | Displays, white LED excitation |
| Cyan | 490–500nm | Decorative lighting |
| Green | 520–535nm | Indicators, displays |
| Yellow-Green | 560–575nm | Signal lights |
| Amber | 590–595nm | Automotive lighting |
| Orange | 600–610nm | Decorative lighting |
| Red | 620–630nm | Indicators, displays |
| Deep Red | 660nm | Horticulture lighting |
| Far Red | 730nm | Plant flowering control |
| Near Infrared | 810nm, 850nm | Medical devices, sensors |
| Infrared | 940nm | Remote controls, security cameras |
| IR | 1050nm | Industrial sensing |
Documentation
Product Guide
Frequently Asked Questions
Can l use any blue and red LED light to grow plants?
As a LED packaging specialist, we enable grow light manufacturers to achieve PPE (Photosynthetic
Photon Efficacy) over 3.5 umolN throughprecision wavelength tuning (e.g., 660+5nm deep red for
flowering) and 95% thermal eficiency ceramic-based packages. Our horticutureoptimized LED
packaging reduces spectral drift by 30% versus standard COBs, ensuring consistent crop yields in
verical farms. With 40% lowesvstem costs for 1000W fixtures, we empower clients to meet booming
demand from the $6,58 horicuture LED market (Grand view Research2030 Projection).
