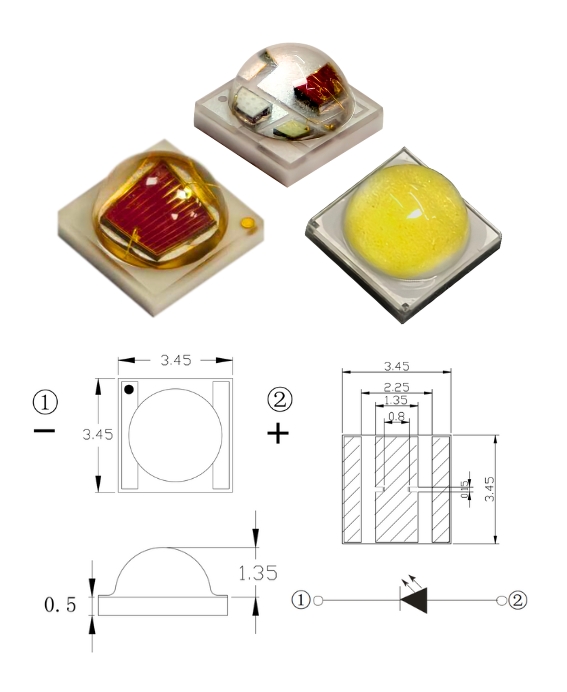

LED 3535
The LED 3535 is a high-power SMD LED package designed for demanding lighting applications that require high brightness, superior reliability, and excellent thermal management. With a compact 3.5 × 3.5 mm footprint, the 3535 LED chip delivers outstanding luminous flux and efficiency, making it ideal for outdoor lighting, horticulture lighting, architectural lighting, and automotive headlights.
Key Features:
High PPE Performance
Excellent Sulfur Resistance
High Lumen Efficiency
Various Beam Angle
Lm-80 / UL Certification
View more SMD LED
Specifications
| Product image | Product Type | Code Number | Current(mA) | Typical Voltage(V) | Max Current(mA) | Color | Beam Angle(°) | CRI/Ra | Substrate | Radiant Flux(mW) | CCT(K)/WLP(nm) | PPE(μmol/J） | LPW(lm/W) | Download |
|
351S | LDR-3535CNAR660V0DR0V9 | 700 | 2 | 1000 | Deepred | 120 | - | Ceramic | / | 660 | 4.65-4.8 | - |
|
|
351V | LDR-3535CNAR660V0DR0L0 | 700 | 2 | 1000 | Deepred | 120 | - | Ceramic | / | 660 | 4.6-4.8 | - |
|
|
351H | LDR-3535CLAR660V0DR0H0 | 700 | 2 | 1000 | Deepred | 120 | - | Ceramic | / | 660 | 3.7-3.85 | - |
|
|
351B | LDR-3553CLZR660V0DR0P0 | 350 | 2 | 1000 | Deepred | 120 | - | Ceramic | / | 660 | 4.7-4.9 | - |
|
|
351B | LDR-3535CNAF730-V0NR0H0 | 350 | 2 | 1000 | Infrared | 120 | - | Ceramics | 400-500 | 730 | - | - |
|
|
351V Angel | LDR-3535CLAR660V0DR0L0 | 700 | 2 | 1500 | Deepred | 135 | - | Ceramic | / | 660 | 4.20-4.35 | - |
|
|
351C | LDR-3535CNAF730-V0NR0H0 | 350 | 2 | 1000 | Infrared | 120 | - | Ceramics | 350-500 | 730 | - | - |
|
|
351V | LDR-3535CLFB450V0UB0K0 | 350 | 3 | 1000 | Blue | 120 | - | Ceramic | / | 450 | 3.2-3.4 | - |
|
|
351W | LDR-3535CNAB450V0UB0PA | 700 | 3 | 700 | Blue | 120 | - | Ceramic | / | 450 | 1.6-1.8 | - |
|
|
351V Angel | LDR-3535CLFB450V0UB0P0 | 350 | 3 | 1500 | Blue | 135 | - | Ceramic | / | 450 | 3.0-3.2 | - |
|
|
351V | LDR-3535CNZV415-V0VA0H0 | 350 | 3 | 500 | UVA | 120 | - | Ceramic | / | 360-420 | - | - |
|
|
351V-Plus | LDR-3535CLF4070-V0A40E0 | 700 | 3 | 1000 | White | 120 | 70 | Ceramic | / | 2700-6500 | 2.6-3.0 | 210-220 |
|
|
351J | LDR-3535CLF6370-V0A63E0 | 350 | 3 | 1000 | White | 120 | 80 | Ceramic | / | 2700-6500 | 2.4-2.8 | 170-180 |
|
|
351V | LDR-3535C*F5780-V0A57H0 | 350 | 3 | 1000 | White | 120 | 80 | Ceramic | / | 2700-6500 | 2.6-3.0 | 160-190 |
|
|
351V | LDR-3535CNF6590V030KH0 | 700 | 3 | 1500 | White | 120 | 90 | Ceramic | / | 2700-6500 | 2.2-2.4 | 170-190 |
|
|
351W | LDR-3535CNZV310-M0VB0L0 | 40 | 6 | 100 | UVB | 120 | - | Ceramic | / | 300-315 | - | - |
|
|
|
351X | LDR-3535CNZV255-M0VC0L0 | 100 | 6 | 100 | UVC | 120 | - | Ceramic | / | 250-260 | - | - |
|
|
351M | LDR-3535CLAY590-V0UY0L | 150 | 2 | 150 | Yellow | 120 | - | Ceramic | / | 590 | - | - |
|
|
351V | LDR-3535CNAG500-V0CB0H0 | 700 | 3 | 1000 | Green | 120 | - | Ceramic | / | 500 | - | - |
|
|
35FR | LDR-3535CNAFR04-V000000 | 350 | 2 | 700 | Bi Color | 120 | - | Ceramic | / | 850+660 | - | - |
|
|
351E | LDR-3535CLAF850-Y0FR0LU | 350 | 2 | 1000 | Infraed | 30 | - | Ceramic | / | 850 | - | - |
|
|
352C | LDR-3535CNARY03-V000000 | 150 | 2 | 300 | Bi Color | 120 | - | Ceramic | / | 620+590 | - | - |
|
|
351V-LX | LDR-3535CNF5770-V0A57E0 | 700 | 3 | 2000 | White | 120 | 70 | Ceramic | / | 5400-6000 | - | 205-215 |
|
Common 3535 LED Configurations
| Configuration Type | Voltage | Power Range | Typical Current | Main Feature | Common Applications |
|---|---|---|---|---|---|
| Single Chip 3535 LED | 3V | 1W–3W | 350mA–700mA | Standard high efficiency | General lighting, flashlights |
| High Power 3535 LED | 6V | 3W–5W | 500mA–1000mA | Higher brightness output | Industrial lighting |
| Dual Chip 3535 LED | 6V / 12V | 2W–6W | 300mA–700mA | Better luminous intensity | Street lighting |
| 3535 Horticulture LED | 2.8V–3.4V | 1W–5W | 350mA–1500mA | Optimized plant spectrum | Grow lights |
| 3535 UV LED | 3V–6V | 1W–5W | 350mA–1000mA | Ultraviolet wavelength | Curing, sterilization |
| 3535 IR LED | 1.4V–2.2V | 1W–3W | 350mA–1000mA | Infrared emission | Security cameras |
| RGB 3535 LED | 5V–12V | 0.2W–3W | 20mA–350mA | Multi-color lighting | Decorative lighting |
| Ceramic 3535 LED | 3V / 6V | 3W–10W | 700mA–2000mA | Excellent thermal performance | High-end lighting |
| Lens Type 3535 LED | 3V / 6V | 1W–5W | 350mA–1500mA | Focused beam angle | Spotlights, horticulture |
| EMC 3535 LED | 3V | 1W–3W | 350mA–700mA | Cost-effective package | Commercial lighting |
3535 LED Application
Horticulture Lighting
Outdoor Lighting
Automotive Lighting
Therapy & Medical Lighting
