How bright is a 3030 smd led bulb in lumens
May 18, 2026
Read：14
Source: lideda

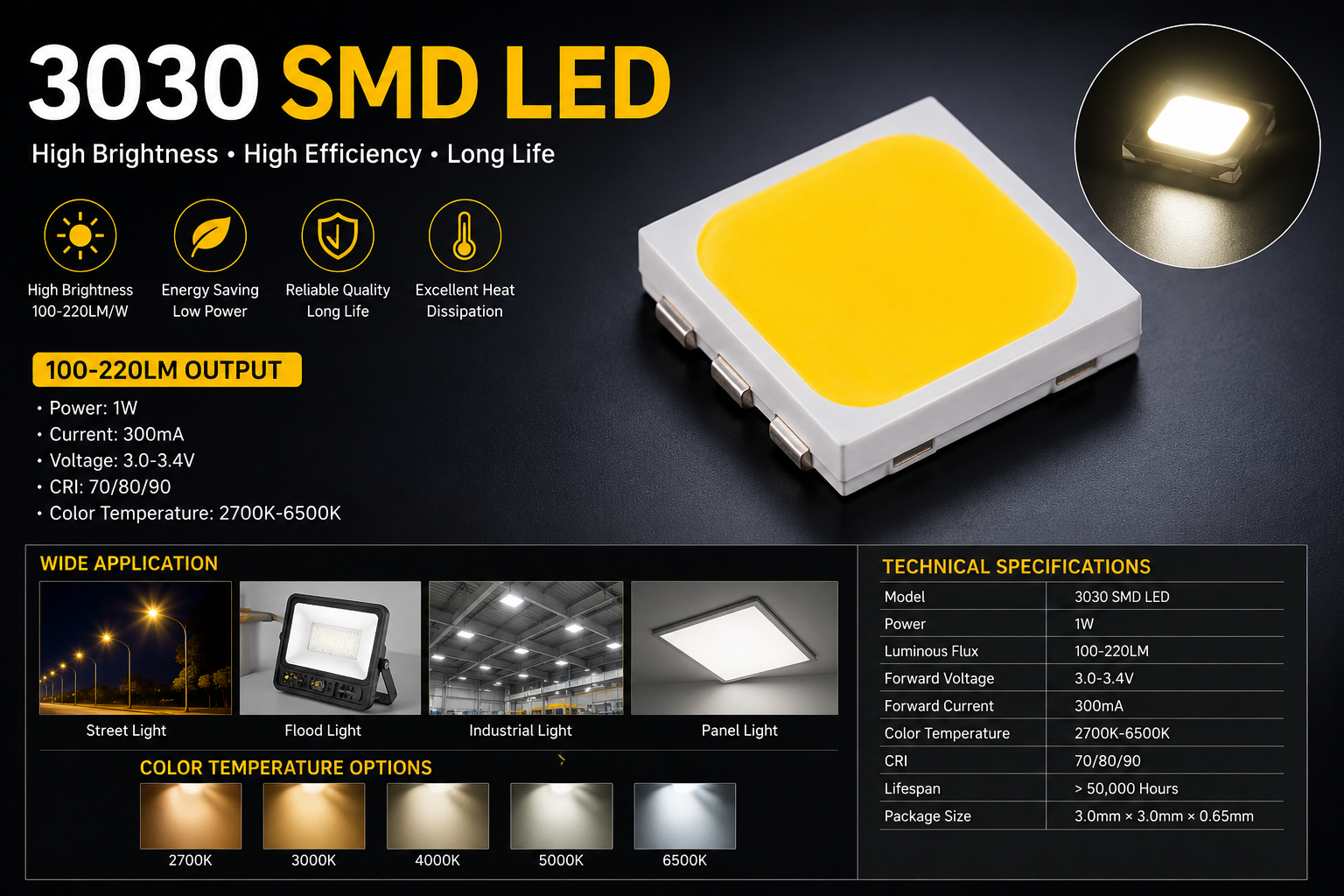

A 3030 SMD LED (3.0mm × 3.0mm package size) can produce very different lumen outputs depending on the chip power, current, efficiency, and application.
Here are the most common brightness ranges:
| 3030 SMD LED Type | Power | Typical Lumens | Typical Efficiency |
|---|---|---|---|
| Low Power 3030 | 0.2W–0.5W | 20–70 lm | 100–140 lm/W |
| Standard 1W 3030 | 1W | 100–160 lm | 110–170 lm/W |
| High Efficiency 3030 | 1W | 160–220 lm | 180–220 lm/W |
| High Power 3030 | 2W–3W | 220–450 lm | 110–180 lm/W |
| Horticulture 3030 | 0.5W–1W | Lower visible lumens* | Focus on PAR/PPF |
*Plant-growing LEDs are measured more by PPF/PAR efficiency rather than human-visible lumens.
Common Real-World Examples
3030 LED for household lighting
Usually around 120–150 lumens per LED3030 LED street light module
Often 160–220 lumens per LED3030 horticulture LED
May appear dimmer to human eyes but still delivers strong plant growth energy
Compared With Other SMD LEDs
| LED Type | Typical Lumens |
|---|---|
| 2835 LED | 20–80 lm |
| 3030 LED | 100–220 lm |
| 3535 LED | 150–350 lm |
| 5050 LED | 40–120 lm |
Why 3030 LEDs Are Popular
3030 LEDs are widely used because they provide:
High brightness
Good heat dissipation
Better efficiency than many 2835 LEDs
Compact size
Suitable for:
street lights
flood lights
grow lights
panel lights
industrial lighting
A common high-quality 3030 LED running at 1W typically delivers:
100\text{ lm} \leq \text{3030 LED Brightness} \leq 220\text{ lm}
Typical forward voltage is:
3V for single-chip versions
6V or 9V for multi-chip versions
And typical operating current:
150mA
300mA
600mA+ for high-power models
