What Is a 5050 LED?

A 5050 SMD LED is a surface-mount LED package measuring 5.0mm × 5.0mm. It is commonly used in:

• LED strips

• Decorative lighting

• RGB lighting

• Backlighting

• Automotive lighting

• Smart lighting systems

Many 5050 LEDs contain 3 LED chips inside one package, so they are brighter than 3528 LEDs.

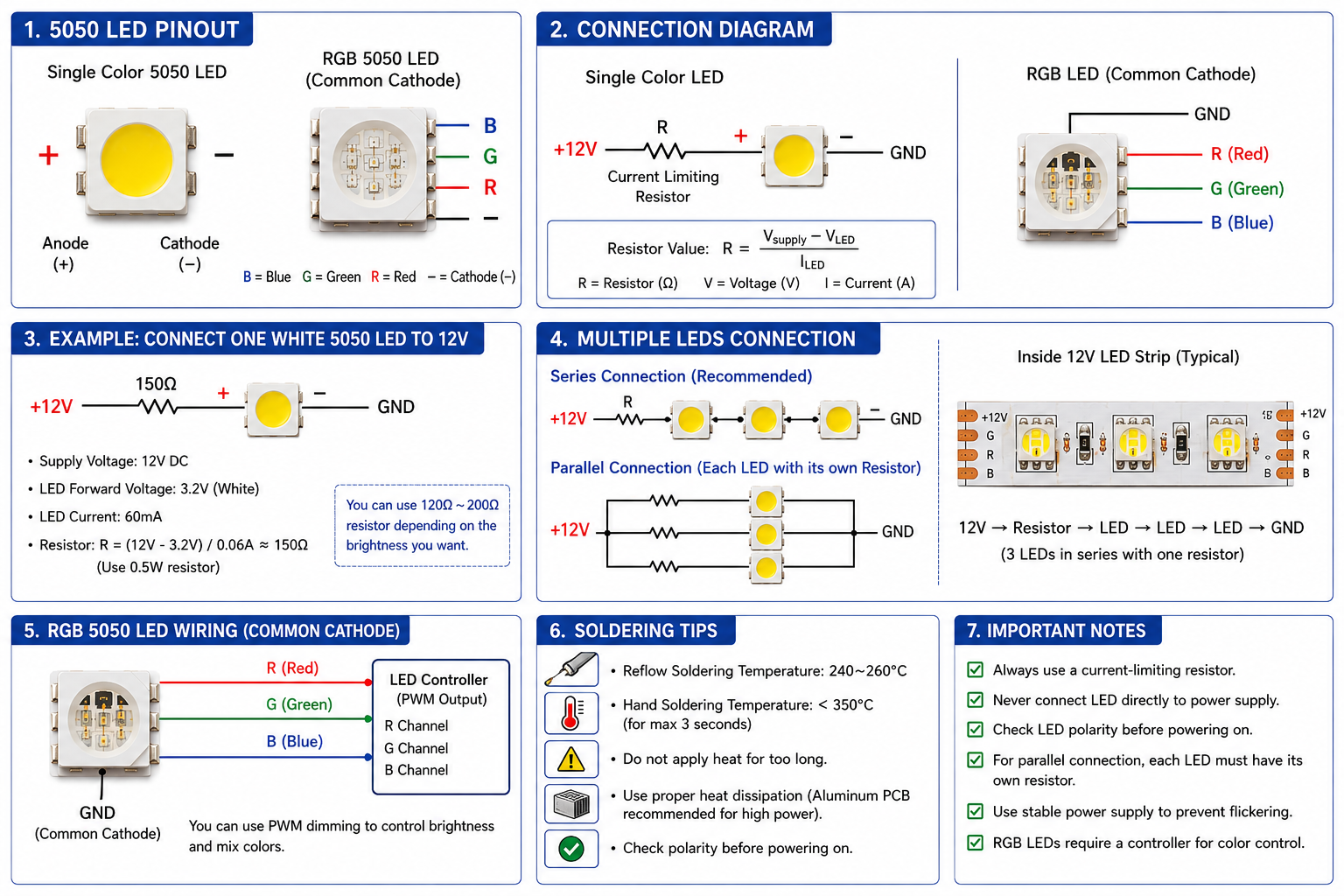

1. Understand the LED Pins

Standard Single-Color 5050 LED

Usually has:

• Anode (+)

• Cathode (-)

Simple Connection

Power (+) → Resistor → LED (+) LED (-) → Power (-)

RGB 5050 LED

RGB versions usually have 4 or 6 pins:

Common Types

Typical pins:

R / G / B / Common

2. Choose the Correct Voltage

Most 5050 LEDs operate at:

3. Use a Current-Limiting Resistor

LEDs must use a resistor to prevent burnout.

Resistor Formula

R=\frac{V_{source}-V_{LED}}{I}

Where:

• (R) = resistor value

• (V_{source}) = power supply voltage

• (V_{LED}) = LED forward voltage

• (I) = LED current

Example: Connect One White 5050 LED to 12V

Assume:

• Supply = 12V

• LED voltage = 3.2V

• Current = 60mA

Calculation:

R=\frac{12V-3.2V}{0.06A}\approx147\Omega

Use:

• 150Ω resistor

• Power rating: 0.5W recommended

4. Series Connection

How It Works

Positive of one LED connects to negative of the next.

+12V → Resistor → LED1 → LED2 → LED3 → GND

Advantages

• Better efficiency

• Lower current draw

Important

Total LED voltage must be lower than supply voltage.

5. Parallel Connection

 → LED1 → +12V → → LED2 →

Important Rule

Each LED branch should have its own resistor.

Incorrect:

One resistor for many parallel LEDs

Correct:

Each LED has independent resistor

6. How 5050 LED Strips Are Connected

Most 12V LED strips use:

• 3 pieces of 5050 LEDs in series

• 1 resistor per group

Typical internal structure:

12V → Resistor → LED → LED → LED → GND

That is why LED strips can be cut every 3 LEDs.

7. RGB 5050 LED Connection

Common Anode RGB

+12V connected to common pin R/G/B pins connect to controller

Common Cathode RGB

GND connected to common pin R/G/B receive positive signal

Usually connected with:

• PWM controller

• Arduino

• LED driver

• Smart controller

8. PCB Soldering Tips

Recommended Temperature

Tips

• Avoid overheating

• Use proper heat dissipation

• Keep polarity correct

• Use aluminum PCB for high power designs

9. Common Problems

10. Recommended Driver Solutions

Typical 5050 LED Wiring Diagram

DC Power Supply + | Resistor | 5050 LED | -

For RGB:

Controller | | | R G B \|/ 5050 RGB LED
